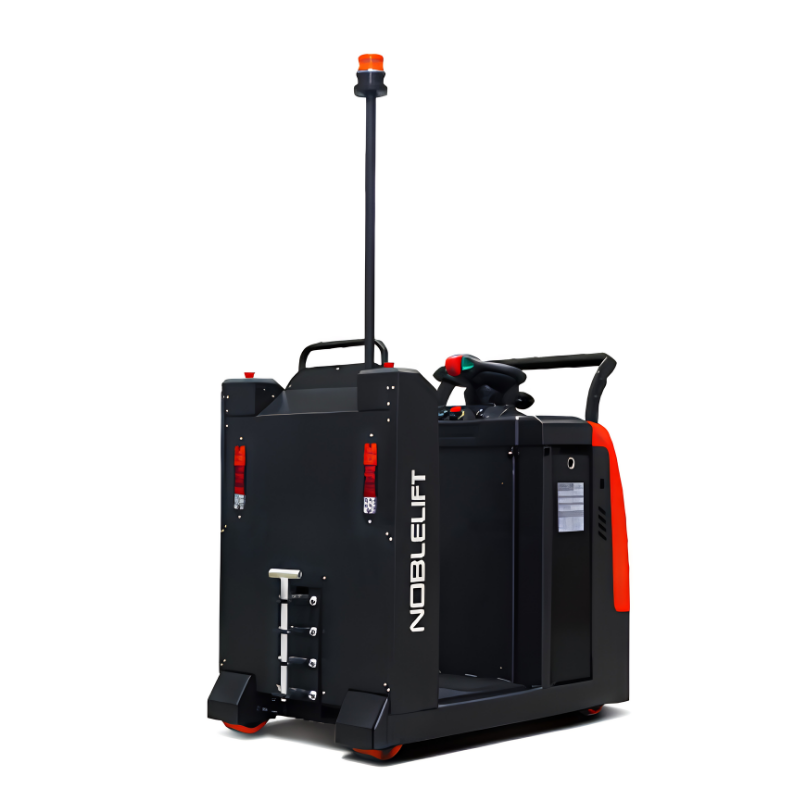

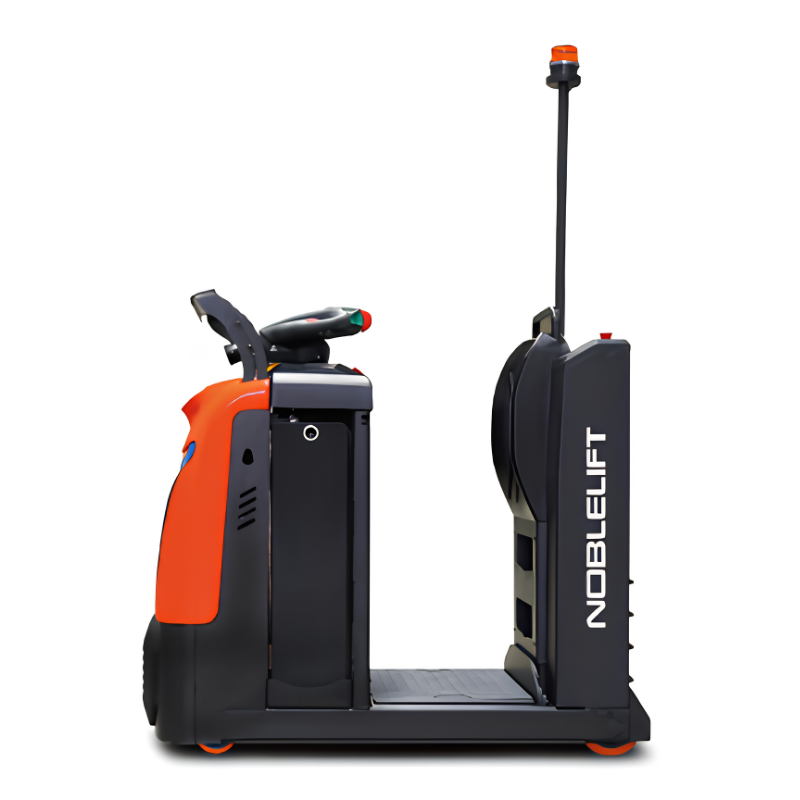

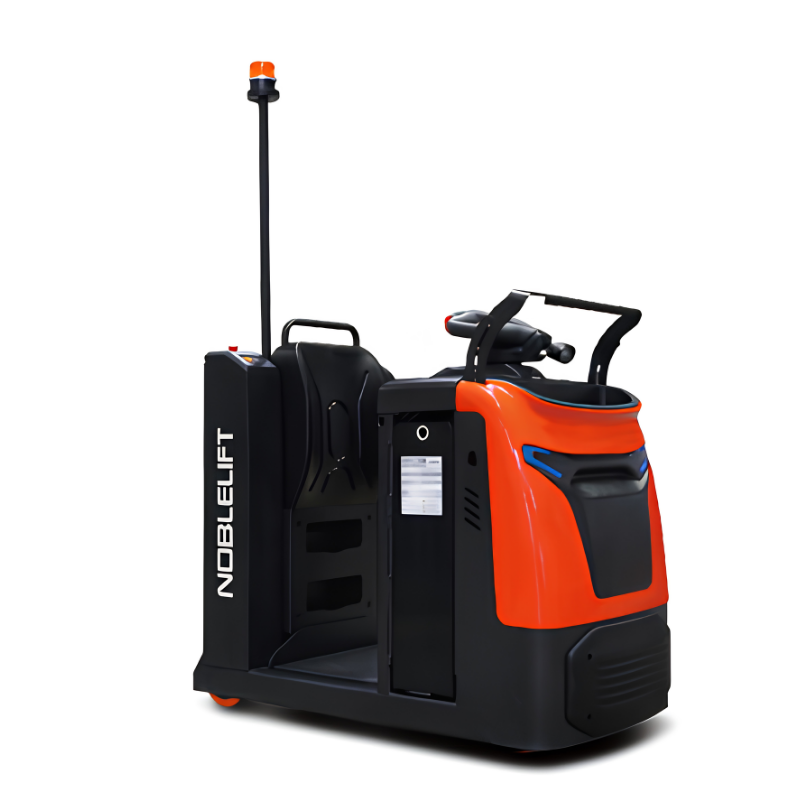

TE30/50N
Stand-on Electric Tow Tractor (3000kg to 5000kg)
The Noblelift T30N and T50N series comprises high-performance, stand-on electric tow tractors engineered for medium-to-long-distance horizontal transport and cart-towing operations. Offering rated towing capacities of 3000 kg (3.0 tonnes) for the T30N and 5000 kg (5.0 tonnes) for the T50N, this series is built to maximize efficiency in busy manufacturing plants, automotive assembly lines, and large warehousing facilities.
Key Technical Specifications
- Towing Capacities: 3000 kg (T30N) and 5000 kg (T50N).
- Rated Drawbar Pull: 800 N (T30N) and 1000 N (T50N).
- Travel Speeds: Up to 9 km/h (T30N) and 12 km/h (T50N) when laden/unladen.
- Turning Radius: Compact turning radius of 1333 mm, optimized for agility in shared industrial corridors.
- Power Systems: Powered by robust 24V configurations (such as 24V/375Ah for T30N and 24V/465Ah for T50N, with high-efficiency lithium battery options available).
Key Features & Benefits
- High-Performance German Drive Technology: Equipped with a powerful, maintenance-free German Schabmueller AC drive motor, Kordel gearbox, and an Italian ZAPI controller that deliver smooth, responsive acceleration and precise deceleration.
- Ergonomic Stand-on Comfort: Features a 4-point structure with a floating platform and rubber dampening pads to minimize vibration, paired with an automotive-grade curved backrest that significantly reduces operator fatigue during long shifts.
- Advanced Safety Mechanisms: Includes side safety flanks and non-slip platform materials to secure operators during high-speed turns, alongside a standard blue safety spotlight that activates during forward travel and tracks steering angles.
- Multi-Shift Ready & User-Friendly: Designed with a sideways battery extraction system for fast swapping, a multifunctional control instrument with integrated fault diagnostics, and convenient double USB charging ports for auxiliary equipment.
