TE10Li
Electric Pedestrian Tow Tractor / Walkie Tugger (1000kg)

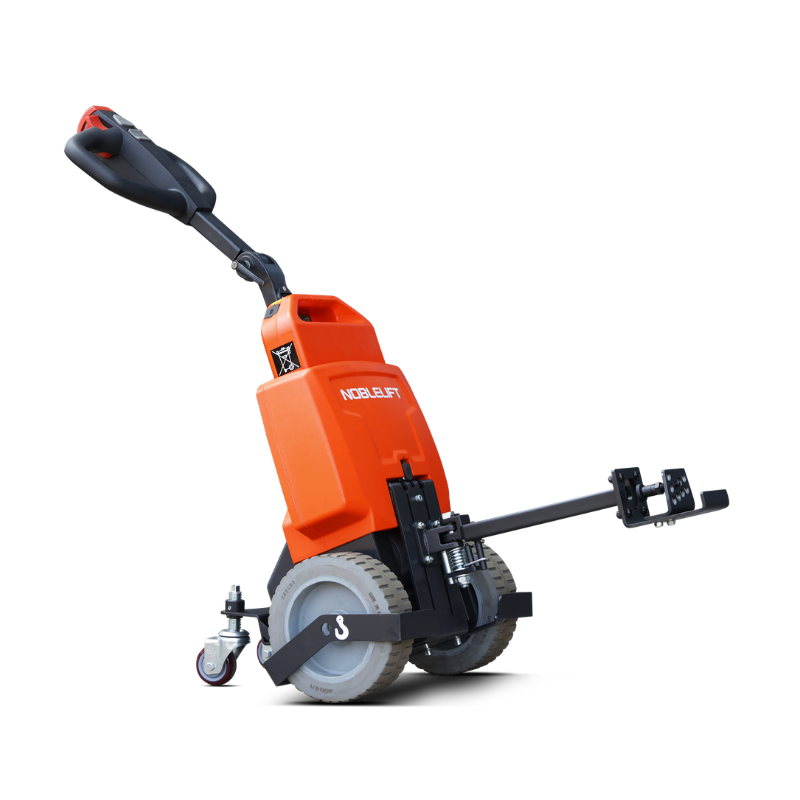

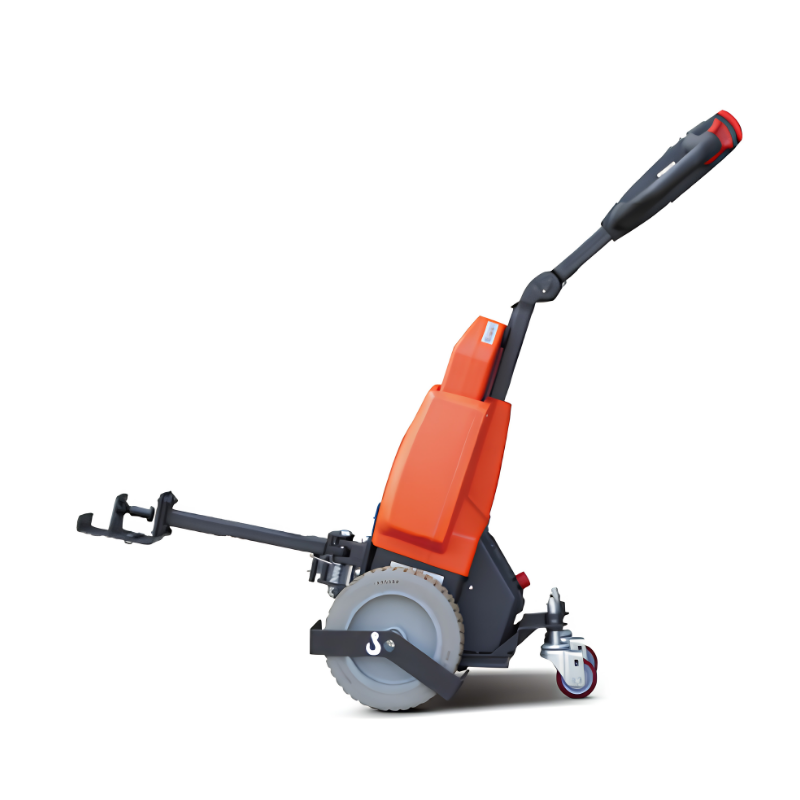

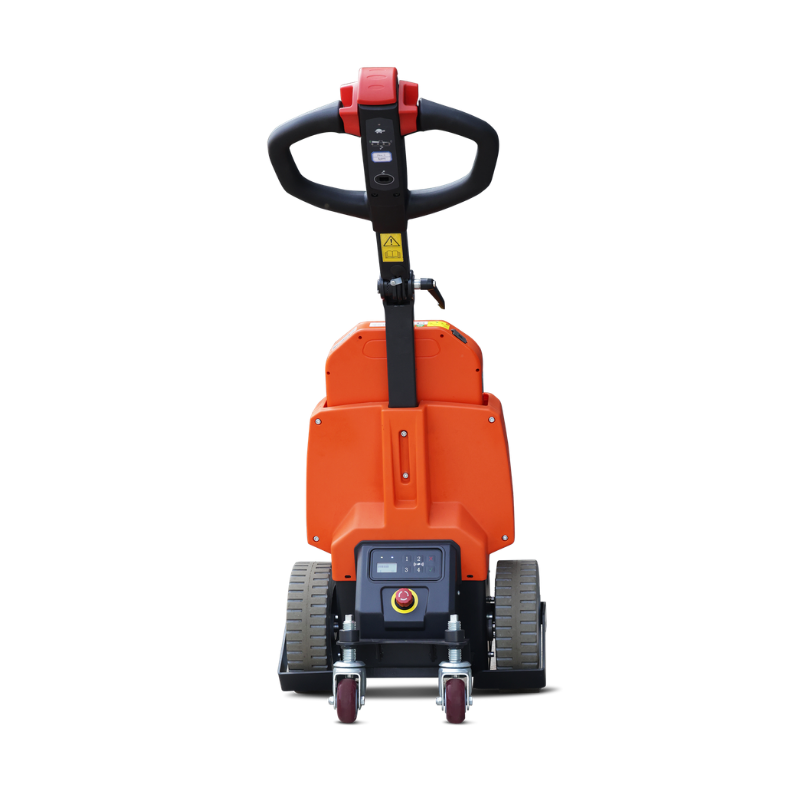

The Noblelift TE10Li is a compact, entry-level electric tow tractor (walkie tugger) engineered for light-duty cart transportation and towing applications. Featuring a rated towing capacity of 1000 kg (1.0 tonne), it is designed around ultimate portability and footprint efficiency, making it ideal for supermarkets, light assembly plants, hospitals, and logistics hubs.
Key Technical Specifications
- Load / Towing Capacity: 1000 kg (1 tonne) rated load.
- Rated Drawbar Pull: 200 N.
- Overall Dimensions: Ultra-compact structure with a length of 915 mm, width of 503 mm, and a wheelbase of 325 mm.
- Turning Radius: Extremely tight turning radius of 560 mm, offering exceptional agility in confined spaces.
- Battery Configuration: Powered by a 24V / 36Ah plug-and-play Lithium-ion battery pack.
Key Features & Benefits
- Featherlight Plug-and-Play Li-Ion Battery: Utilizes a lightweight, high-density lithium battery weighing only about 8 kg, allowing anyone to swap the power pack in mere seconds to support multi-shift operations.
- Exceptional Maneuverability: Features a detachable coupling arm with stepless height adjustment and a pivot point placed close to the wheelbase, ensuring smooth and precise cornering when towing carts.
- Versatile Coupling Options: Compatible with various hook configurations (including optional electric couplings and custom-designed hooks) to fit different styles of industrial or commercial carts.
- User-Friendly Control & Safety: Equipped with an innovative handle adjustment mechanism, a crawl/low-speed mode for tight spots, an ergonomic handle design, and a safety emergency reverse button to protect the operator.
