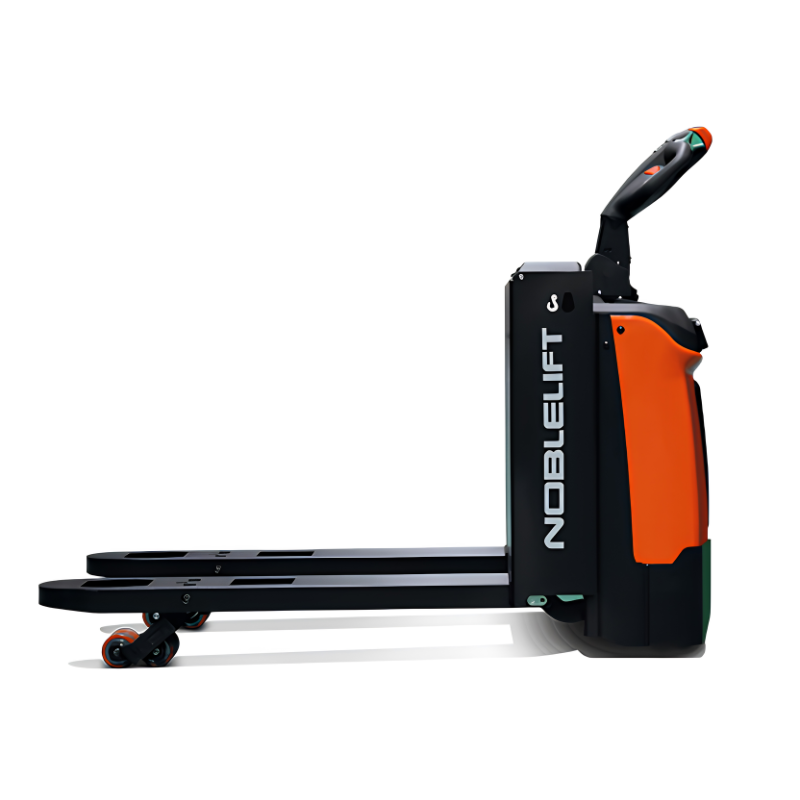

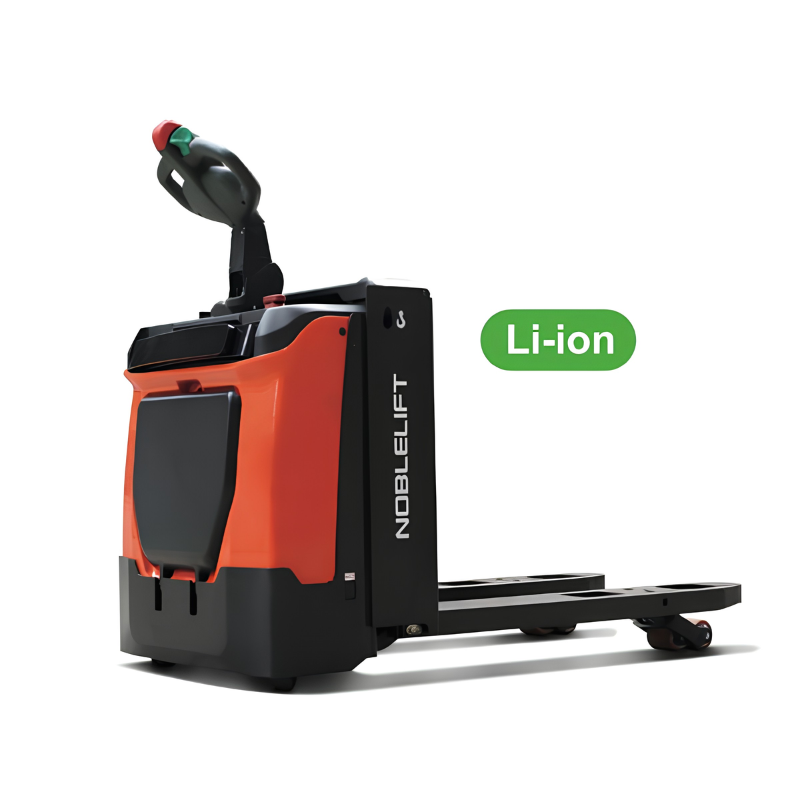

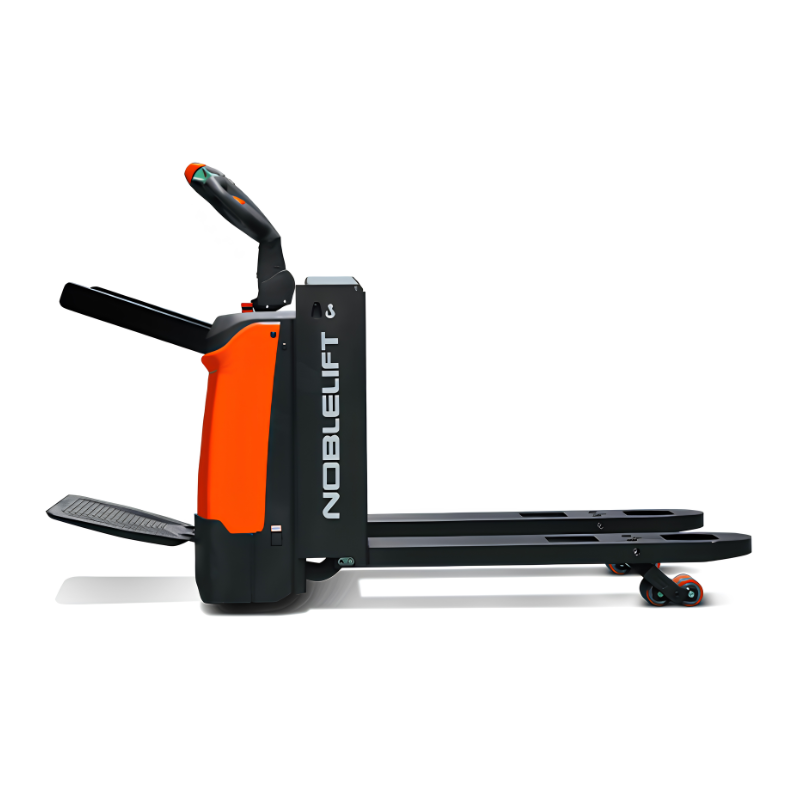

PT20Li
Lithium Powered Pallet Truck
The Noblelift PT20Li is a high-performance, lithium-ion-powered electric pallet truck with a rated load capacity of 2000 kg (2.0 tonnes). Built with a compact body and integrated Electric Power Steering (EPS), it is engineered for efficient, smooth, and safe horizontal transport and pallet handling operations in narrow aisles, warehouses, and industrial facilities.
Key Technical Specifications
- Load Capacity: 2000 kg (2.0 tonnes).
- Drive & Lift Motors: Equipped with a 1.4 kW AC drive motor and a high-power 2.2 kW hydraulic pump unit with dual lifting cylinders.
- Battery & Power System: Powered by a 24V / 150Ah Lithium-ion battery pack supporting fast charging (< 2 hours) and opportunity charging without memory degradation.
- Travel Speed: 7.0 to 7.5 km/h (laden) and 8.0 km/h (unladen).
- Maneuverability: Compact chassis with a turning radius of approximately 1422 mm to 1585 mm for navigating tight storage spaces.
- Gradeability: Up to 8% (laden) and 15% (unladen).
Key Features & Benefits
- Advanced Lithium-Ion Efficiency: Maintenance-free battery system that allows flexible opportunity charging during breaks, eliminating battery replacement needs for multi-shift work.
- Electric Power Steering (EPS): Enables effortless steering control and precise maneuvering, significantly lowering operator physical exertion.
- Smart & Ergonomic Operating Interface: Includes an ergonomic control tiller, multi-functional LCD display (tracking battery level, hour counter, and error codes), PIN-code keypad / RFID card access lock, and a built-in USB charging port.
- Comfort & Durability: Features a foldable platform with suspension, protective fold-down side arms, a heavy-duty reinforced chassis, and adjustable pull rods for maximum load stability.
