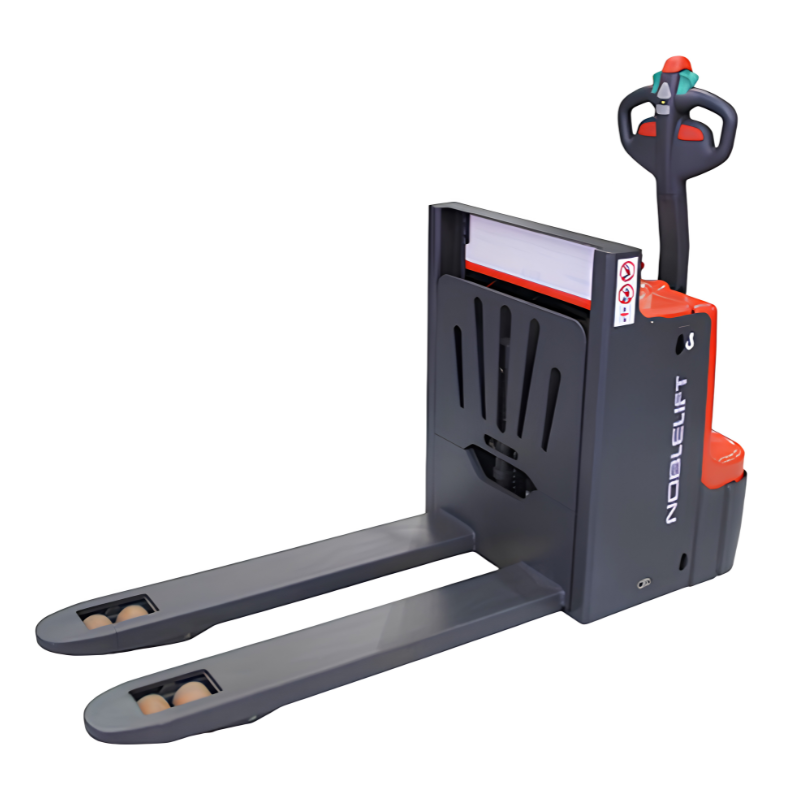

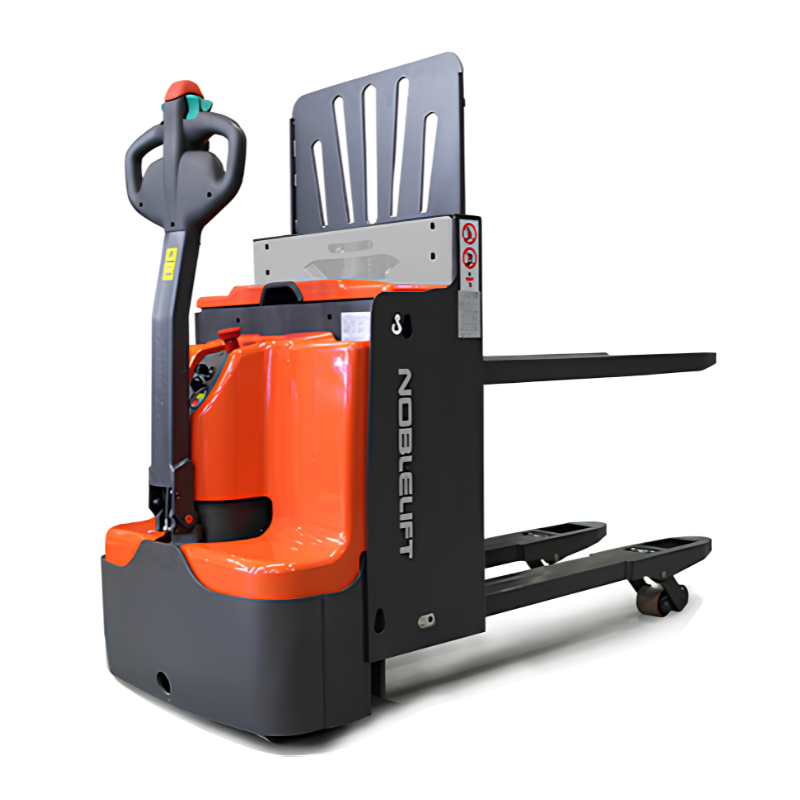

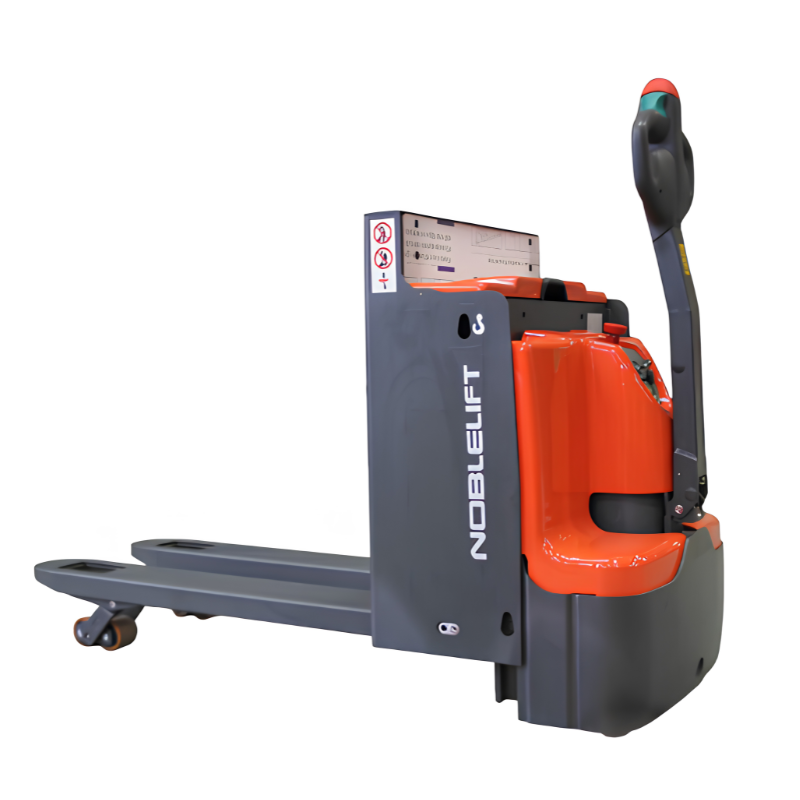

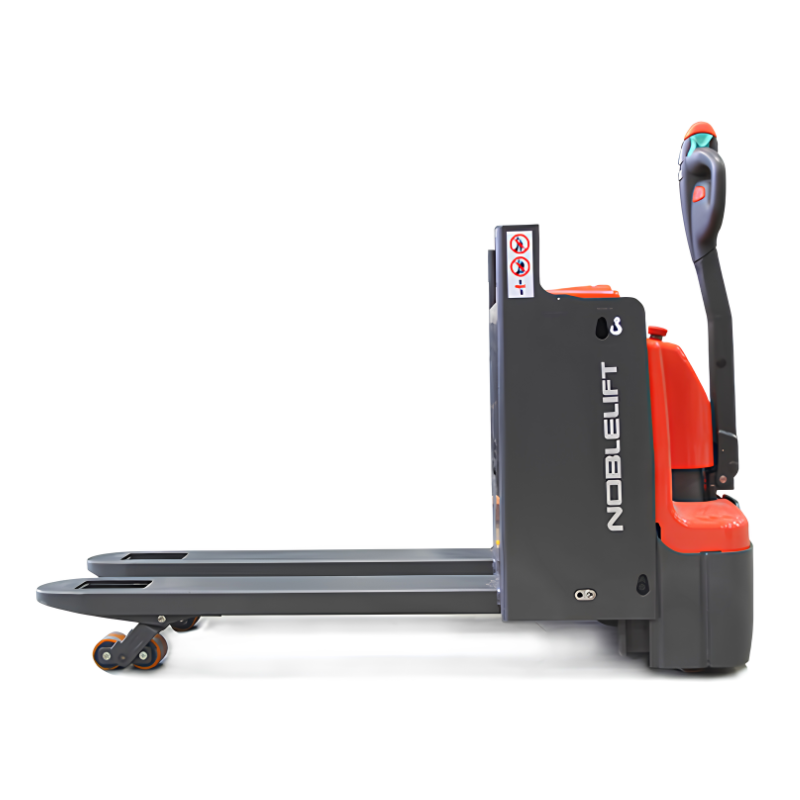

PT20I
Power Electric Pallet Truck With Mast Lift (2000kg)
The Noblelift PT20I is an advanced electric pallet truck featuring a dual-lifting design built to seamlessly bridge standard horizontal material transport with health-friendly order picking. With a robust low-lift transportation capacity of up to 2000 kg (2.0 tonnes), it is expertly engineered for unloading delivery lorries, short-distance transport, factory assembly lines, and warehouse or salesroom operations.
Key Technical Specifications
- Transportation Load Capacity: 2000 kg
- Initial Mast Lift Capacity: 1000 kg up to an 800 mm lift height (acts as an ergonomic workstation/picking platform).
- Battery Configurations: Typically equipped with 24V/160Ah or 24V/210Ah lead-acid batteries, with optional high-performance lithium-ion configurations available for multi-shift operations.
- Core Drive & Control Components: Integrates top-tier European components, including a German KORDEL gearbox, German INTORQ magnetic brake, German WICKE drive wheel, and an Italian ZAPI controller.
Key Features & Benefits
- Double Lifting / Initial Lift Design: Features a secondary mast lift that elevates pallets up to 800 mm (with a 1000 kg capacity), allowing operators to adjust working heights and eliminate continuous bending during order picking.
- Ergonomic Controls: Includes sideways-positioned lifting buttons located conveniently near the picking area for fast and accessible height adjustments, alongside an ergonomic long tiller that ensures a safe operating distance from the chassis.
- Static Hydraulic Design: Engineered so that the hydraulic system remains stationary during the lifting and lowering of the truck, maximizing stability and safety.
- Robust & Durable Build: Features a heavy-duty chassis protected by an 8 mm thick steel apron to withstand external mechanical impacts, complemented by a secure steel battery cover.
- Multi-Shift Ready: Designed to support side-way battery replacement for fast, efficient swapping in high-intensity working environments.
