ACS/ACZ 20H/L

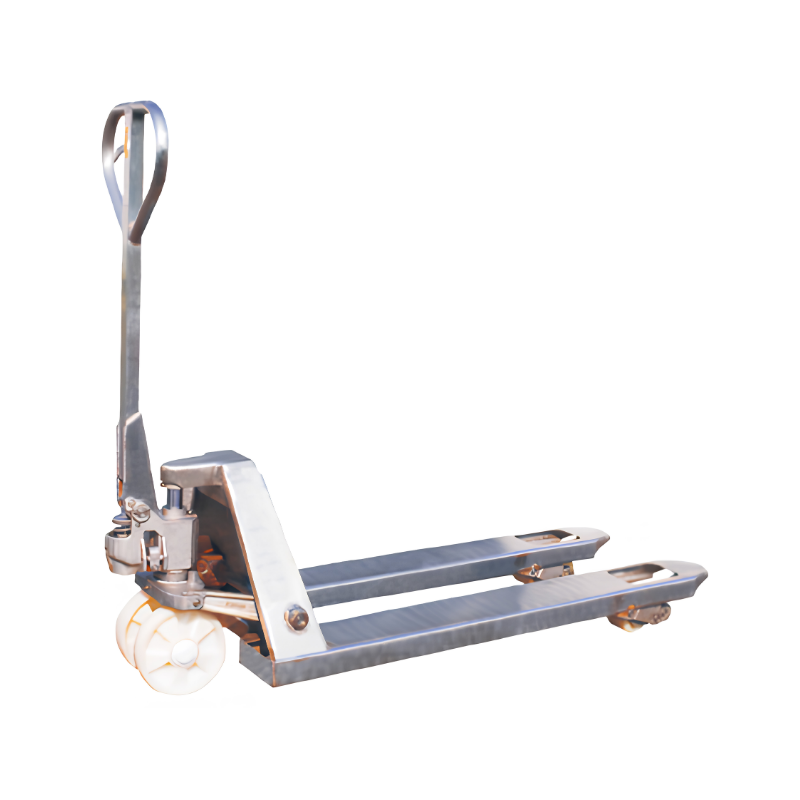

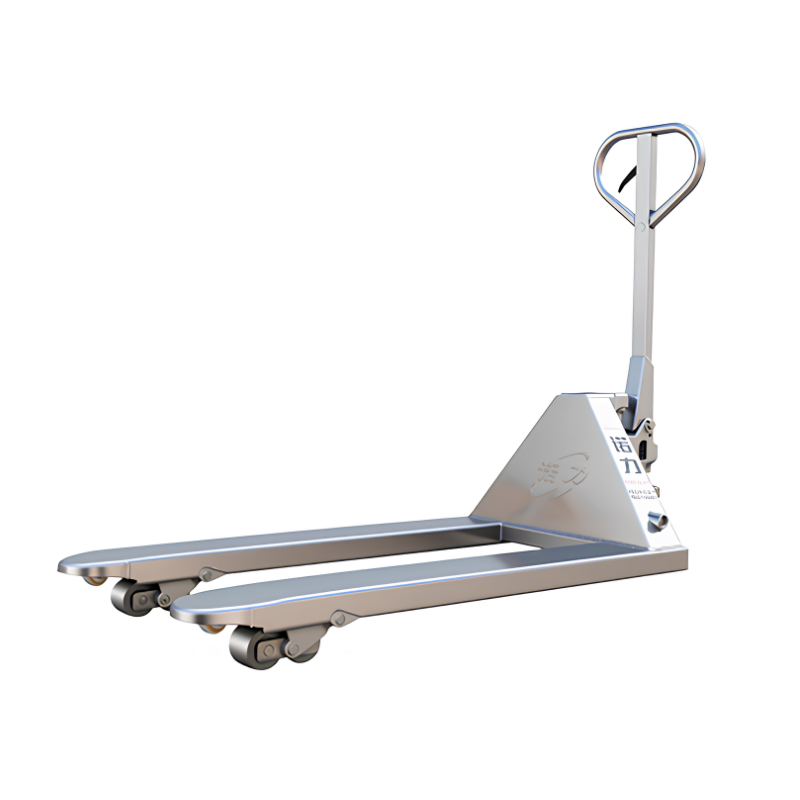

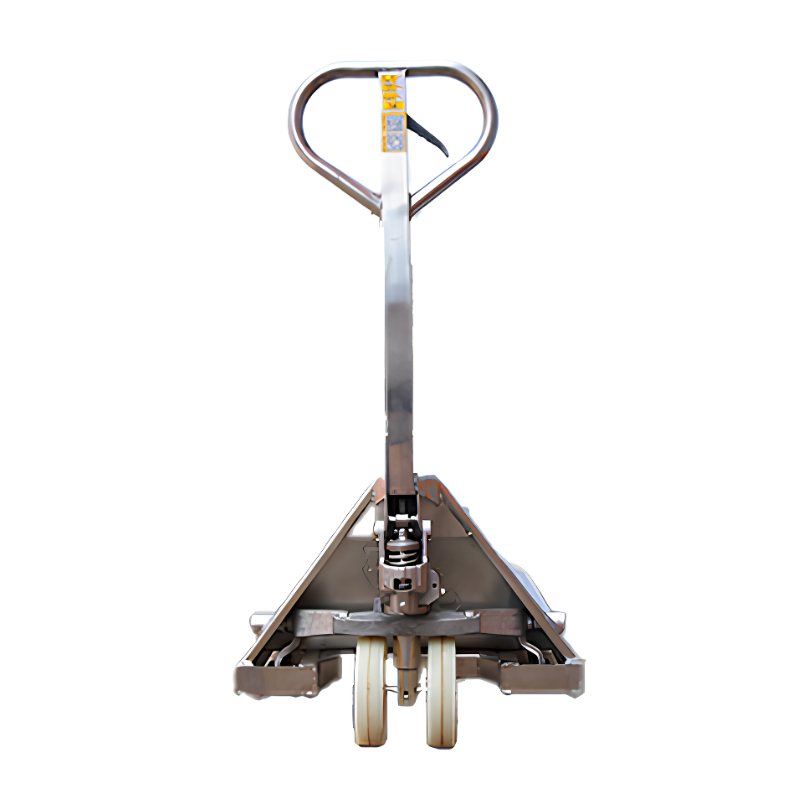

Stainless Steel and Galvanized Hand Pallet Trucks
The Noblelift ACS and ACZ 20H/L series comprises specialized, corrosion-resistant manual hand pallet trucks designed for harsh, hygienic, and corrosive environments. With a rated load capacity of 2000 kg (2.0 tonnes), this lineup is engineered specifically for industries requiring rigorous sanitation standards, such as food processing, chemical plants, pharmaceutical laboratories, and marine applications.
Key Technical Specifications
- Load Capacities:
- ACE20: 2000 kg (designed with wide overall fork options like 838 mm, 850 mm, or 1000 mm).
- ACL20: 2000 kg (configured with extra-long forks up to 1500 mm, 1800 mm, or 2000 mm).
- ACL35: Heavy-duty 3500 kg capacity paired with extended fork lengths (up to 2000 mm).
- Fork Heights: Low min-fork heights of 75 mm to 85 mm, with a maximum lift height up to 190–200 mm.
- Fork Dimensions: Extra-wide or extra-long frame profiles tailored for stability when hauling non-standard cargo sizes.
Key Features & Benefits
- Specialized Formats for Non-Standard Loads: Engineered specifically to solve handling challenges involving oversized, extra-long, or unusually wide loads that standard pallet trucks cannot safely balance.
- Heavy-Duty Torsion-Resistant Chassis: Built with high-quality steel profiles protected by premium powder-coating and painting systems to withstand intensive everyday use and resist corrosion.
- Durable Hydraulic Pump Design: Equipped with a reliable, finely tuned hydraulic pump featuring a built-in overload valve and controlled lowering speed to protect operators and goods.
- Ergonomic & Effortless Operation: Features a comfortable 3-position operational handle (Raise, Neutral, Lower) combined with smooth-running entry/exit rollers and greased pivot points for effortless steering and maximum stability.
