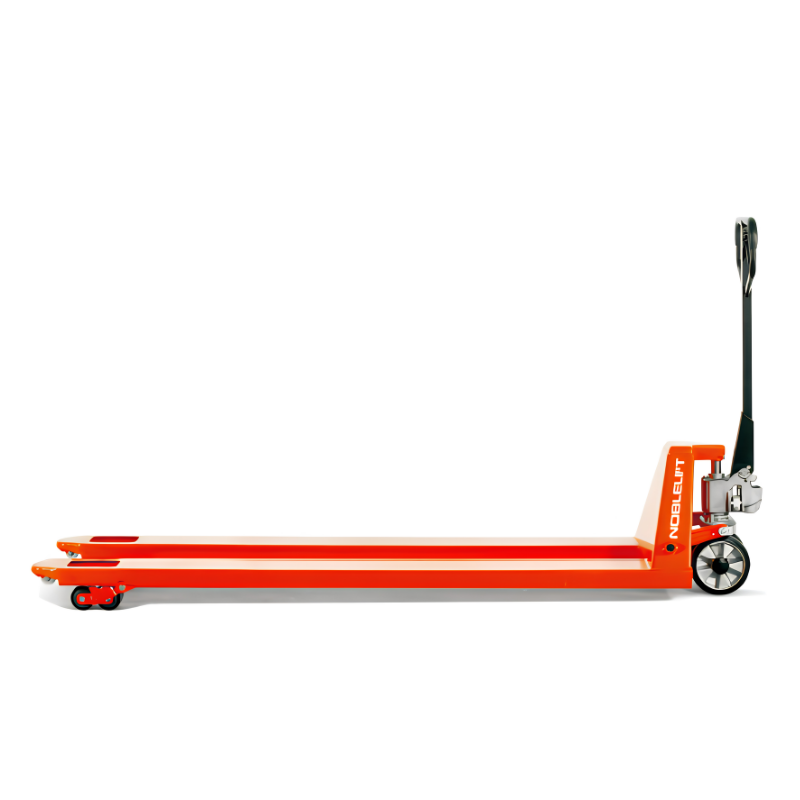

ACE20/ACL20/35
Special Hand Pallet Trucks
The Noblelift ACE20 and ACL20/35 series comprises specialized manual hand pallet trucks engineered for non-standard material handling tasks, wide pallets, or long-span loads. Ranging from 2000 kg to 3500 kg (2.0 to 3.5 tonnes) in capacity, this lineup provides robust, reliable short-distance horizontal transport for unique warehousing applications, oversized containers, and special-format pallets.
Key Technical Specifications
- Load Capacities:
- ACE20: 2000 kg (designed with wide overall fork options like 838 mm, 850 mm, or 1000 mm).
- ACL20: 2000 kg (configured with extra-long forks up to 1500 mm, 1800 mm, or 2000 mm).
- ACL35: Heavy-duty 3500 kg capacity paired with extended fork lengths (up to 2000 mm).
- Fork Heights: Low min-fork heights of 75 mm to 85 mm, with a maximum lift height up to 190–200 mm.
- Fork Dimensions: Extra-wide or extra-long frame profiles tailored for stability when hauling non-standard cargo sizes.
Key Features & Benefits
- Specialized Formats for Non-Standard Loads: Engineered specifically to solve handling challenges involving oversized, extra-long, or unusually wide loads that standard pallet trucks cannot safely balance.
- Heavy-Duty Torsion-Resistant Chassis: Built with high-quality steel profiles protected by premium powder-coating and painting systems to withstand intensive everyday use and resist corrosion.
- Durable Hydraulic Pump Design: Equipped with a reliable, finely tuned hydraulic pump featuring a built-in overload valve and controlled lowering speed to protect operators and goods.
- Ergonomic & Effortless Operation: Features a comfortable 3-position operational handle (Raise, Neutral, Lower) combined with smooth-running entry/exit rollers and greased pivot points for effortless steering and maximum stability.
