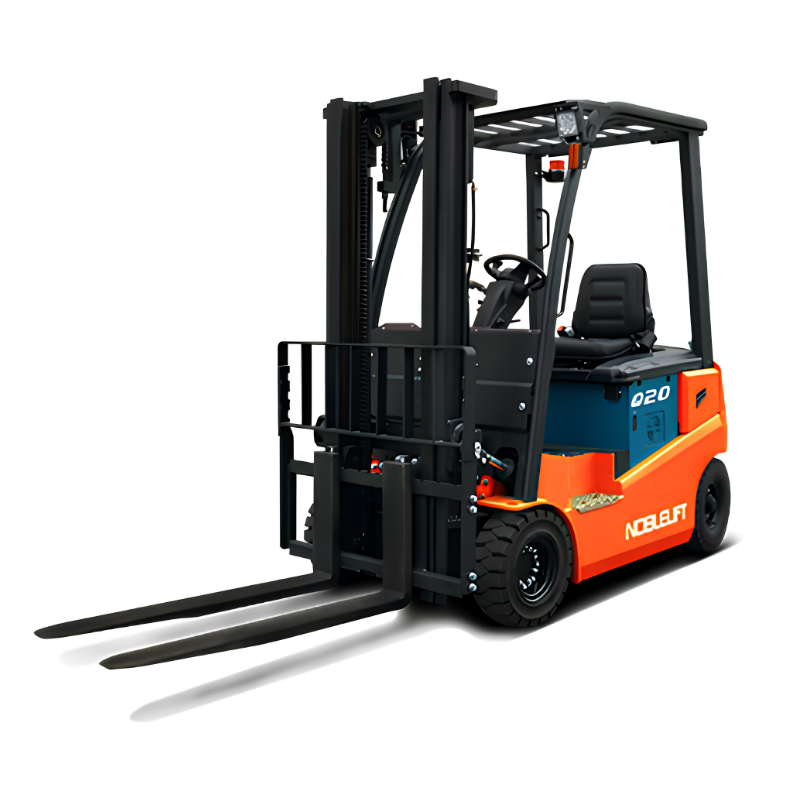

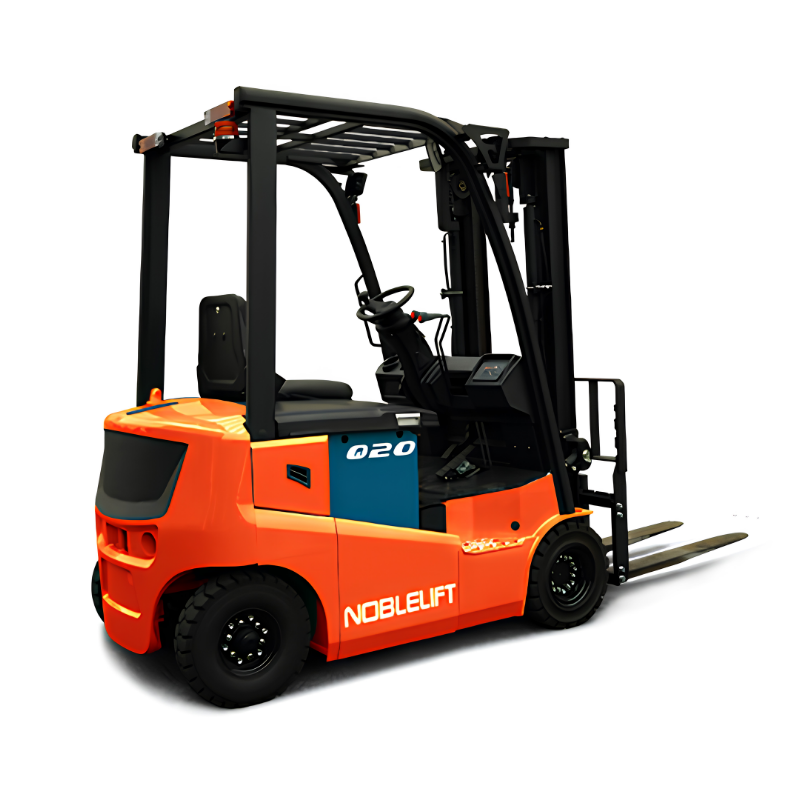

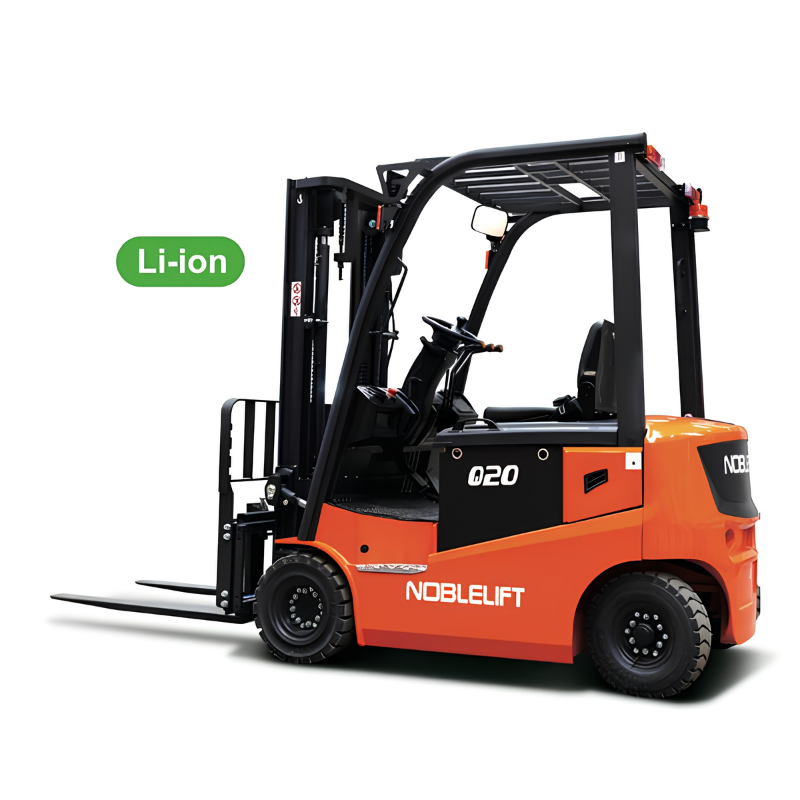

FE4P16/20Q
Four wheel Electric Forklift
The Noblelift FE4P16/20Q series comprises compact, high-performance 4-wheel electric counterbalanced forklifts engineered for light-to-medium-duty applications. Combining a smaller, more flexible footprint with great stability, it is available in 1600 kg (1.6 tonnes) for the FE4P16Q and 2000 kg (2.0 tonnes) for the FE4P20Q.
Key Technical Specifications
- Load Capacities: 1600 kg (FE4P16Q) and 2000 kg (FE4P20Q).
- Service Weight (with battery): 2940 kg for the 1.6-tonne model and 3180 kg for the 2.0-tonne model.
- Turning Radius: Approximately 1990 mm, providing excellent agility in confined spaces and narrow warehouse aisles.
- Battery Flexibility: Supports both traditional Lead-Acid batteries (48V / 360–460Ah) and advanced Lithium-Ion (Li-ion) configurations (48V / 200–400Ah).
- Drive Motor: Powered by a maintenance-free 48V AC drive motor equipped with speed and temperature sensors for enhanced reliability.
Key Features & Benefits
- Low Center of Gravity & Low Profile Design: Features a horizontal fan-shaped drive axle arranged in parallel with a large transmission ratio, allowing the battery to sit low in the frame. This lowers the overhead guard height to about 2080 mm, making it easy to clear low doorways or enter restricted elevators.
- Quiet & Low-Vibration Operations: Utilizes a low-noise gear pump, full hydraulic power steering, and a shock-absorbing steering axle that protects internal systems and minimizes operator fatigue.
- Car-Style Controls & Electromagnetic Braking: Integrates an automotive-style driving and braking control setup with electromagnetic braking for smooth, comfortable operation.
- Flexible Battery Replacement: Designed for easy side-extraction battery swapping using another forklift, perfectly supporting multi-shift operations.
