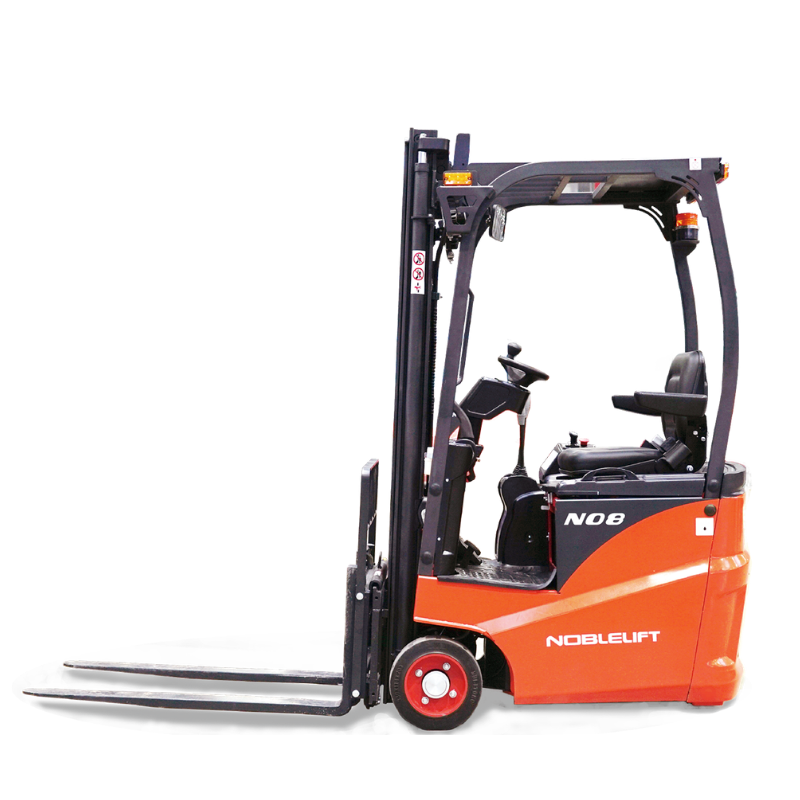

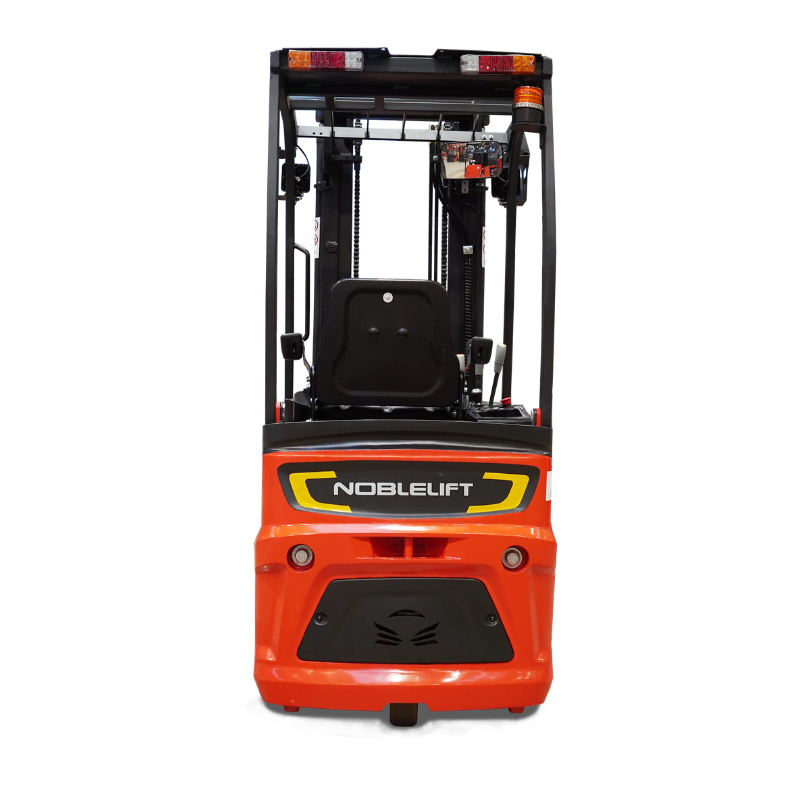

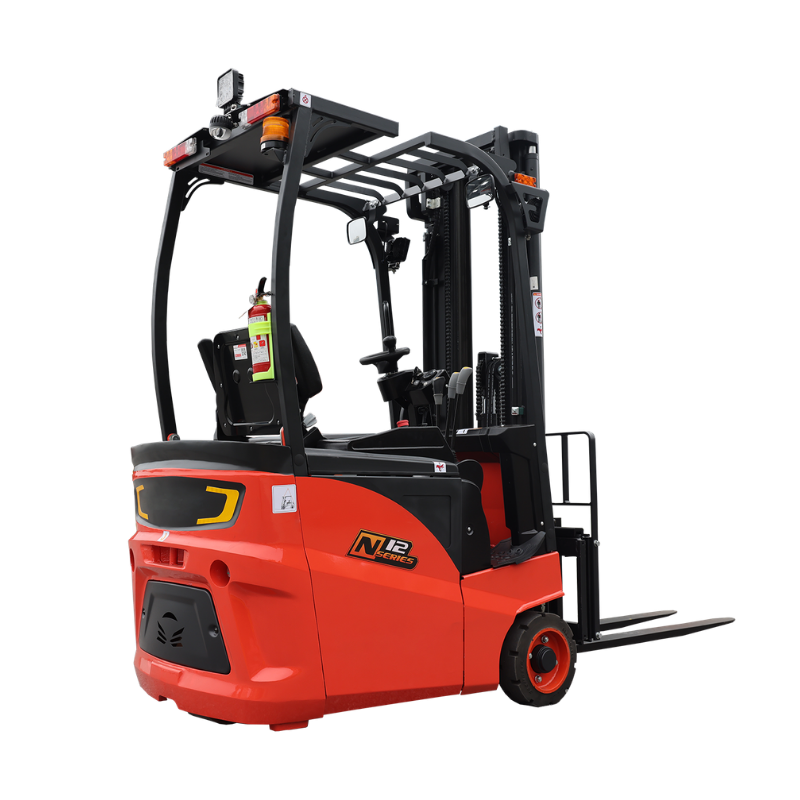

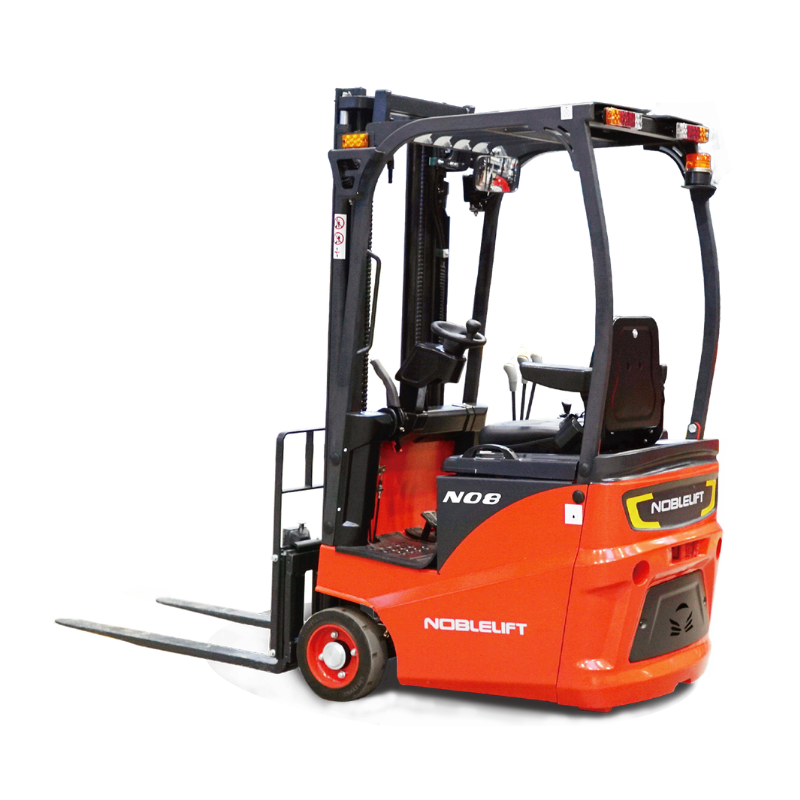

FE3R08-12N
3-Wheel Electric Forklift (800kg to 1200kg)
The Noblelift FE3R08-12N is a compact, highly agile 3-wheel electric counterbalanced forklift series tailored for light-to-medium-duty material handling in confined spaces. Available in three capacity models—800 kg (FE3R08N), 1000 kg (FE3R10N), and 1200 kg (FE3R12N)—this series delivers exceptional maneuverability for narrow aisles, retail stores, and small warehouses.
Key Technical Specifications
- Load Capacities: 800 kg (FE3R08N), 1000 kg (FE3R10N), and 1200 kg (FE3R12N) at a 500 mm load center.
- Service Weight (with battery): Ranges from 1800 kg to 2080 kg depending on the model.
- Standard Lift Height: Reaches up to 3000 mm.
- Turning Radius: Extremely tight turning radius ranging from 1160 mm to 1350 mm, allowing for smooth 360-degree pivoting in restricted areas.
- Battery Configurations: Powered by a 24V system, featuring standard nominal capacities of 24/280 Ah (for FE3R08N) and 24/420 Ah (for FE3R10N/12N), with higher-capacity options available.
Key Features & Benefits
- Ultra-Compact Maneuverability: The 3-wheel layout combined with a remarkably small turning radius makes it ideal for navigating tight racking layouts and congested loading areas.
- Optimized Light-Duty Efficiency: Perfectly balanced for operations dealing with lighter loads, reducing energy waste and footprint compared to heavy industrial counterbalanced trucks.
- Ergonomic and User-Friendly: Designed with operator comfort in mind, offering easy-to-reach controls, smooth steering, and high visibility through the mast for enhanced safety during daily tasks.
