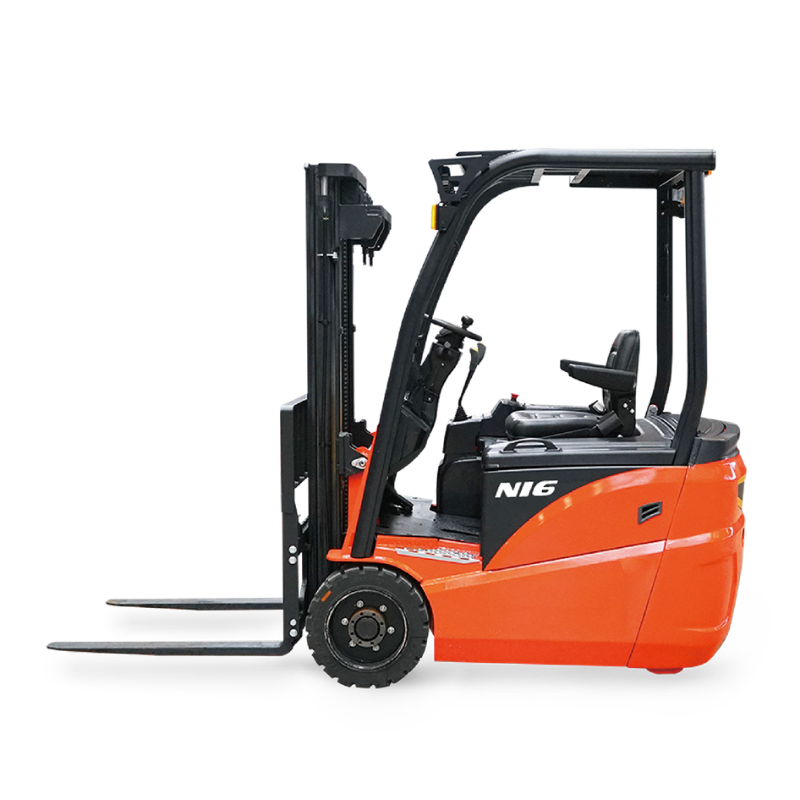

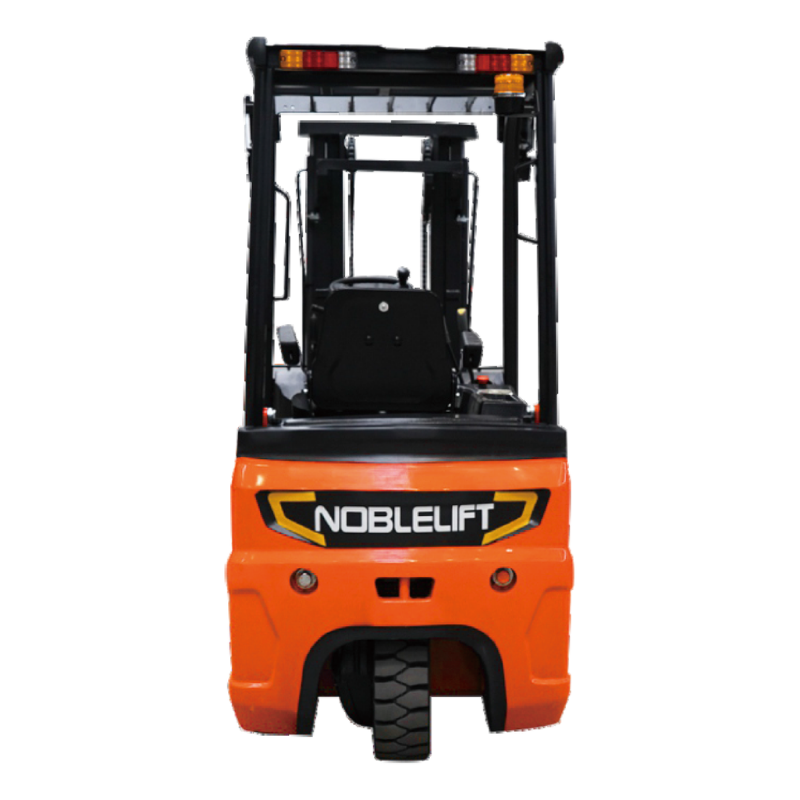

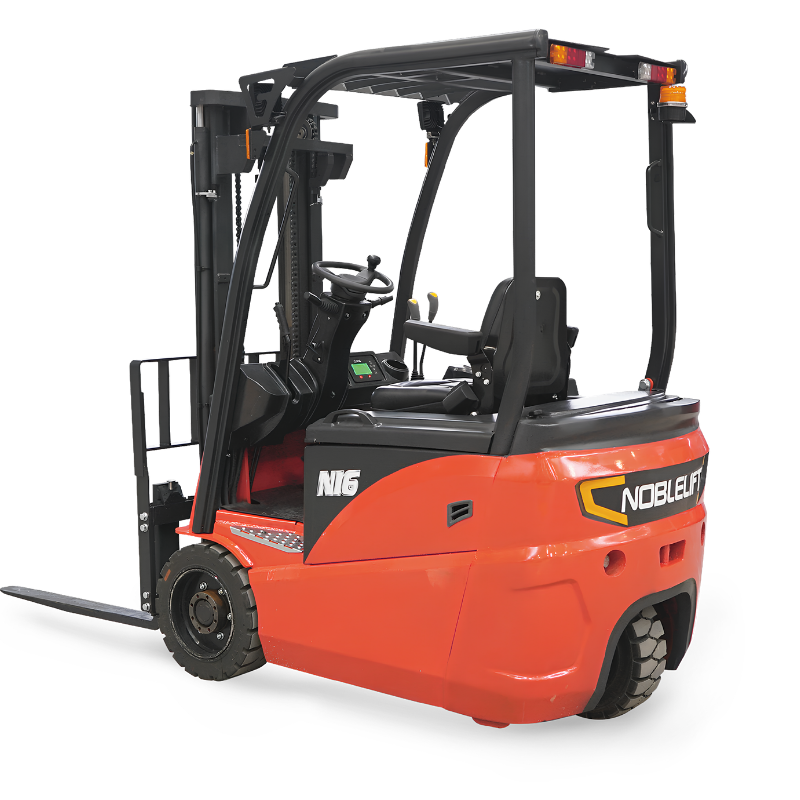

FE3R16NC
3-Wheel Electric Counterbalanced Forklift
The Noblelift FE3R16NC is a compact, high-performance 3-wheel electric counterbalanced forklift featuring a rear-wheel drive configuration. Engineered with a rated load capacity of 1600 kg (1.6 tonnes), it is specifically designed for high-mobility, space-saving material handling in indoor warehouses, tight aisles, and confined industrial environments.
Key Technical Specifications
- Load Capacity: 1600 kg at a 500 mm load center.
- Service Weight (with battery): Approximately 3000 kg.
- Lift Height: Standard configuration reaches up to 3000 mm, with modular multi-stage masts capable of extending higher.
- Turning Radius: Extremely compact turning radius of 1500 mm, paired with an overall vehicle width of 1000 mm for superior narrow-aisle passability.
- Battery Configuration: Powered by a 48V system (standard 48V/350Ah capacity, with 48V/400Ah or lithium options available).
Key Features & Benefits
- Exceptional Mobility in Confined Spaces: The 3-wheel configuration and tight turning radius allow operators to maneuver seamlessly inside storage containers, narrow racking aisles, and crowded distribution spaces.
- Maintenance-Free AC Drive System: Equipped with reliable AC drive technology and intelligent computer controllers (ZAPI or Curtis options) that ensure smooth acceleration, precise handling, and lower overall maintenance costs.
- Smart Safety & Self-Diagnostics: Features an on-board self-diagnostic display, LED front/rear lighting for dim environments, and an integrated rear-wheel position sensor that automatically reduces travel speed during tight cornering.
- Ergonomic Operator Comfort: Designed with a small-diameter steering wheel featuring a spinner knob, adjustable steering column and seating positions, and effortless Electric Power Steering (EPS) to minimize operator fatigue during long shifts.
- Convenient Battery Maintenance: Supports side battery extraction for fast and safe swapping, accommodating multi-shift operations with ease.
