HIW/HTF

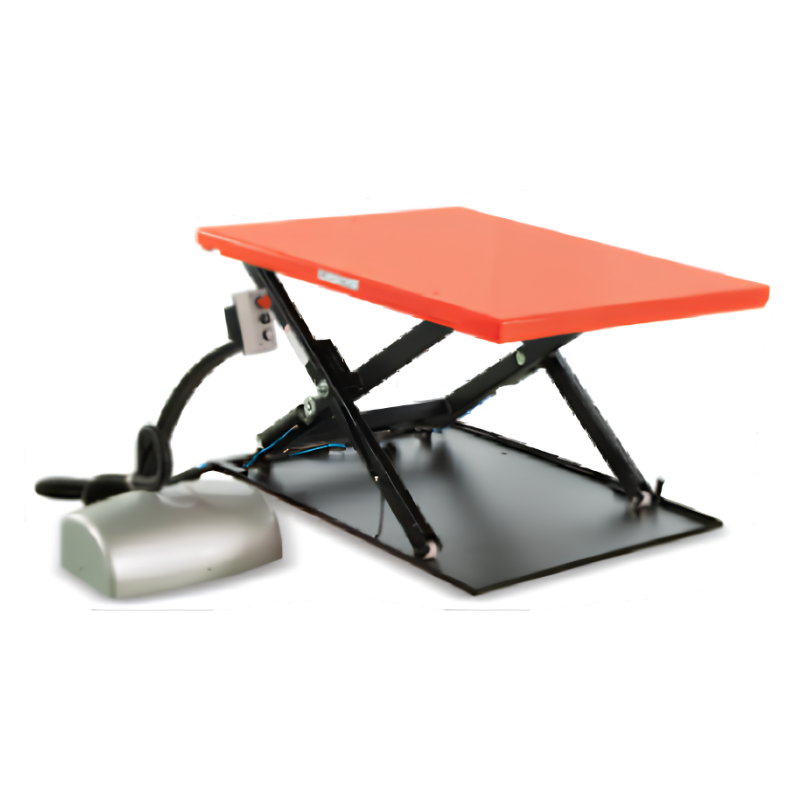

The Noblelift Low Profile Electric Lifting Platform series (including the flat platform ELF/HIW and the specialized HTF-U/HTF-G U-shape configurations) is engineered to provide heavy-duty lifting, material positioning, and ergonomic workstation support. Built with a compact hydraulic design, this lineup features ultra-low lowered heights to eliminate deep pit installations and accommodates varying loading capacities up to 3000 kg.

Description
Download Brochure

Key Technical Specifications

Load Capacities: Ranging from 500 kg up to 3000 kg depending on the specific model (e.g., HTF-G05 at 500 kg, HTF-G10/HTF-U10 at 1000 kg, and heavy-duty industrial configurations up to 3000 kg).
Lowered Heights: Extremely low profile designs featuring minimal lowered heights starting from **85 mm up to 220 mm**, making load loading effortless.
Raised Heights: Standard lifted heights reaching up to 760 mm for low-profile variants, and up to 1020 mm for standard electric lifting platforms.
Power Architecture:Equipped with robust 0.75 kW to 1.5 kW motor units supporting flexible voltage choices including single-phase (230V/50Hz) and 3-phase (380V/50Hz) power supply options.

Key Features & Benefits

Compact Hydraulic & Safety Design: Built with high-pressure cylinders featuring dual safety functions and all safety components strictly complying with **EN1570** standards.
Hard Chrome-Plated Piston Rods: Designed with durable, hard chrome-plated piston rods and study industrial structures to withstand rigorous everyday wear.
U-Shape Accessibility (HTF-U Models): The specialized 'U' shape allows a manual pallet truck to directly roll and position a pallet or cage onto the lift platform without requiring ramps, making it ideal as an assembly line feeding table.
Ergonomic Push-Button Control: Operated via easy push buttons paired with a **3-meter long control cable** and an emergency switch-off (complete with UP, DOWN, and EMERGENCY STOP controls on remote power systems).
Overload Protection: Integrated overload by-pass valves protect both the pump mechanism and the operator during heavy lifting cycles.
Versatile Applications:Perfect for multiple industrial tasks including lifting/lowering heavy materials, level compensation during machine fitting, and integration into automated conveyor systems.
